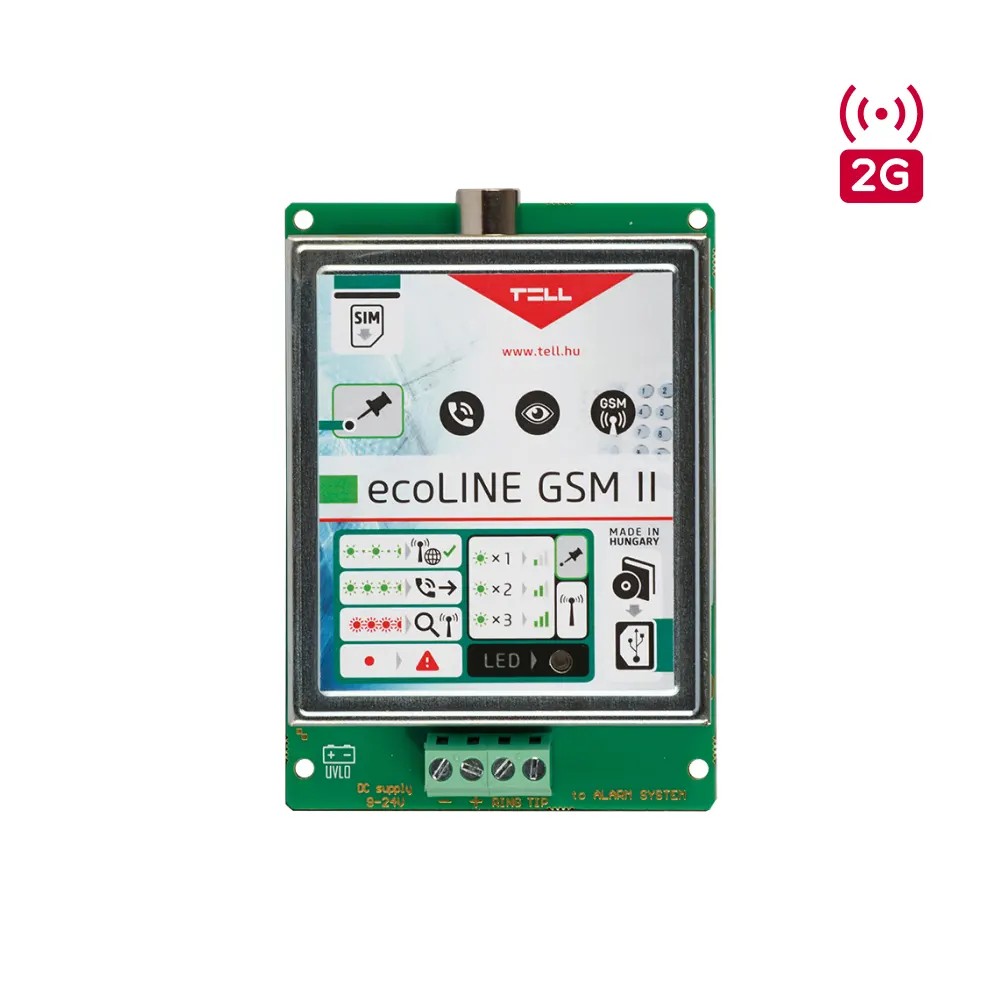

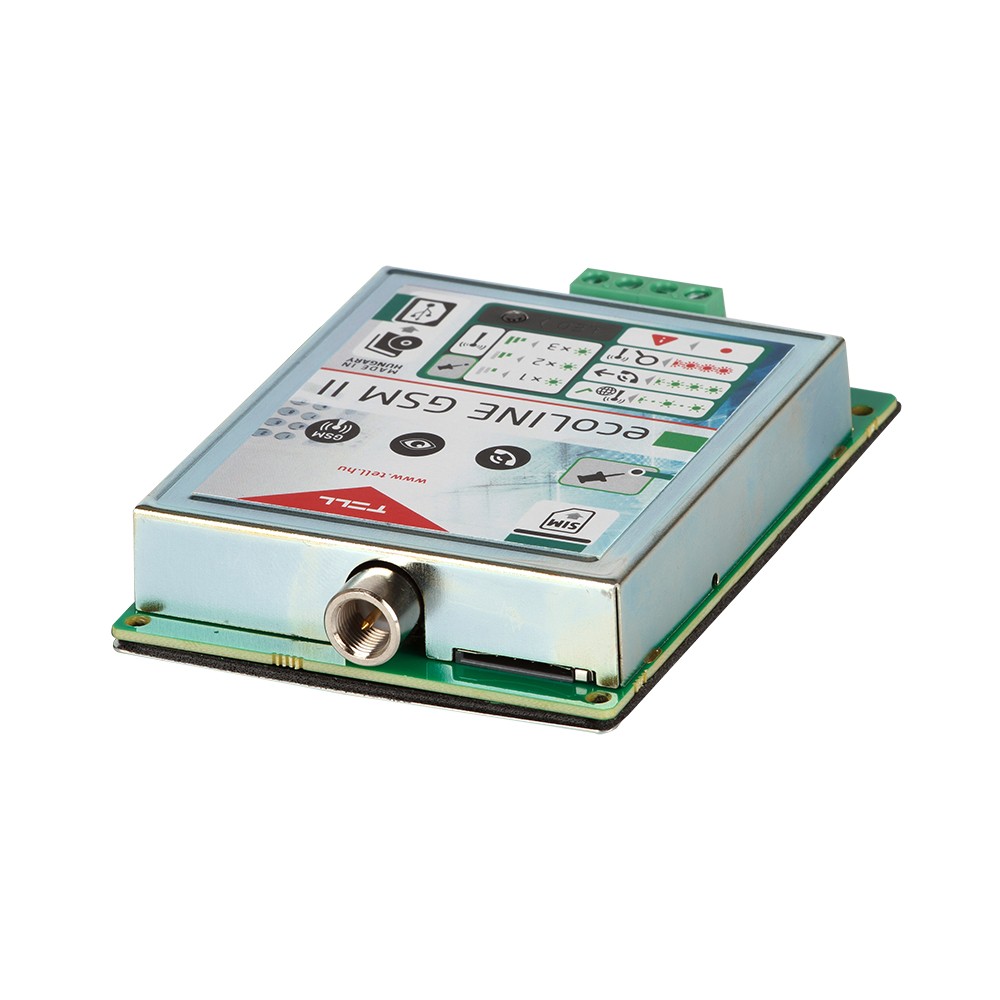

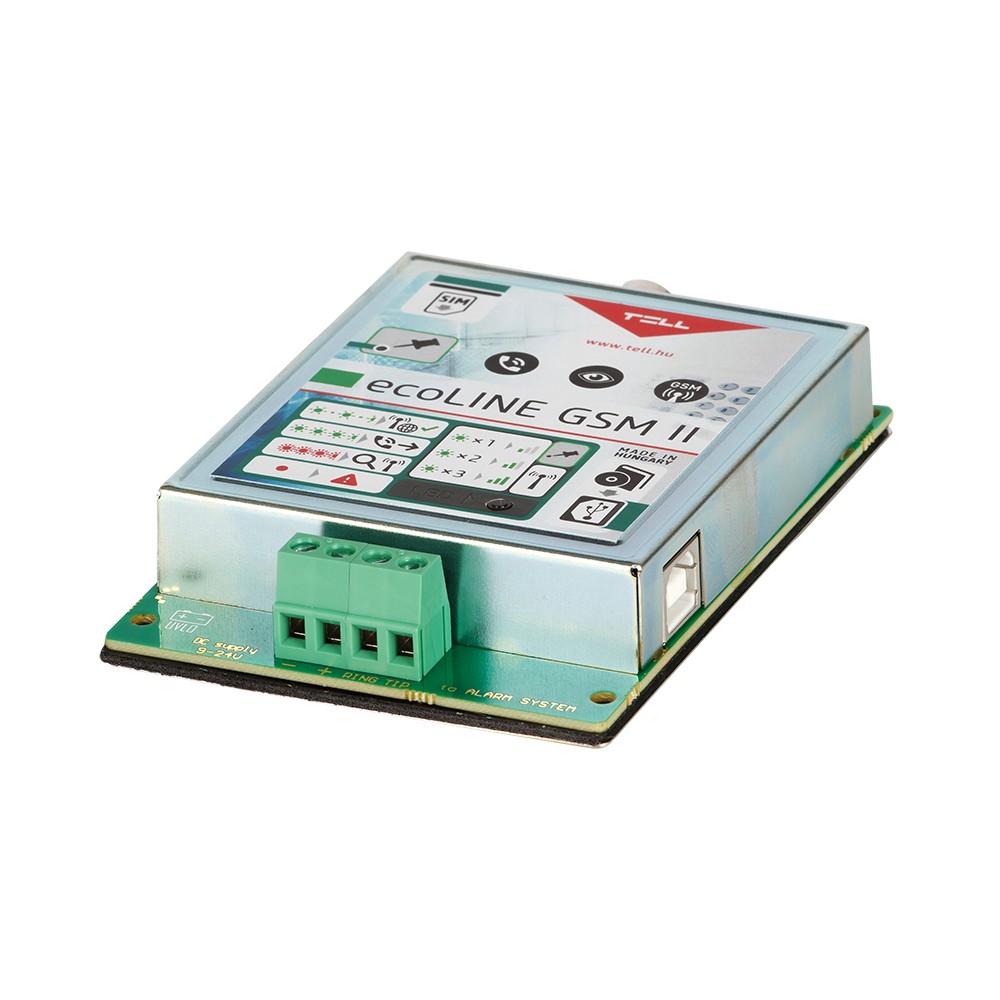

ecoLINE GSM II

Communicator for alarm control panels, wich can be used as a universal GSM adapter for alarm sytems, as a GSM line simulator, or for substituting a landline.

More details about the product

I want to try it

Details

Main features:

GSM communication
1 telephone line output
Forwarding of incoming SMS messages
Push-button for GSM signal strength indication
Supported operating system: Windows 10

Application area:

Universal GSM adapter for security systems
Landline substituting device
GSM phone line simulator

Functions:

Connecting alarm control panels to the GSM network, that are capable of sending signals in DTMF format to the central monitoring station via landline (Contact ID, Ademco Express).
The adapter enables installing an alarm system where no landline is available, but reporting to a monitoring station is required.
When a landline phone is connected, outgoing and incoming calls are made over the GSM network.
Checking GSM signal strength with LED display.
Forwarding of incoming SMS messages to a configurable mobile phone number

Info

Identifiers

Additional product versions:

Technical specification

Transmission channel:

GSM

Frequency band:

850/900/1800/1900 MHz

Operating temperature:

-20 ºC - +70 ºC

Supply voltage:

9-24V DC

Current consumption (maximum):

400 mA @ 12 VDC

Current consumption (nominal):

110 mA @ 12 VDC

Casing:

PCB + metal housing

Terminal connector design:

Mounted on the panel

Dimensions:

100x70x19 mm

Package size:

180x131x55 mm

Product weight:

80 g

Weight (with package):

250 g

Notifications

DTMF-based reporting to monitoring station:

Yes

Supported protocols

SIA DC-05 (DTMF) protocol:

Yes

Users

User phone numbers for forwarding incoming SMS messages:

Programming

Programming method:

Using a hard-wired telephone or via SMS

Other functions

Voice dialer adaptation:

Yes

Adaptation of alarm control panels to mobile network:

Yes

Phone line emulation:

Yes

Weight:

250 g/db
