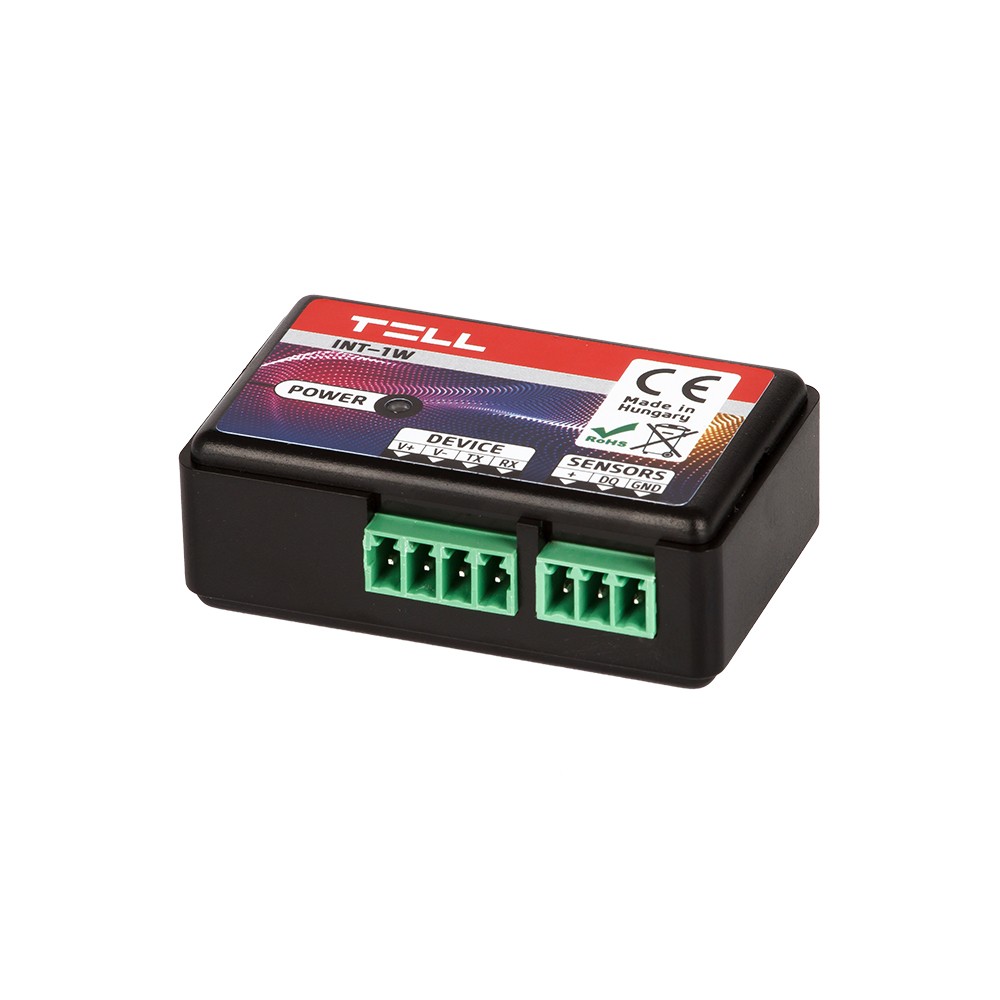

INT-1W 1-Wire Interface

The INT-1W interface is used to adapt DS18B20 1-Wire temperature sensors to the following products: Pager8 (supports up to 6 temperature sensors)

9 900 Ft
gross: 12 573 Ft

Technical specification

Operating temperature:

-20 ºC - +70 ºC

Supply voltage:

12-30V DC

Current consumption (maximum):

8 mA

Current consumption (nominal):

7 mA

Output voltage:

3,3V DC

Casing:

Plastic

Terminal connector design:

Connectable

Dimensions:

58,5x35,7x20,8 mm

Product weight:

27 g

Weight (with package):

80 g

Other functions

Possibility to connect temperature sensor:

DS18B20

Weight:

80 g/db
