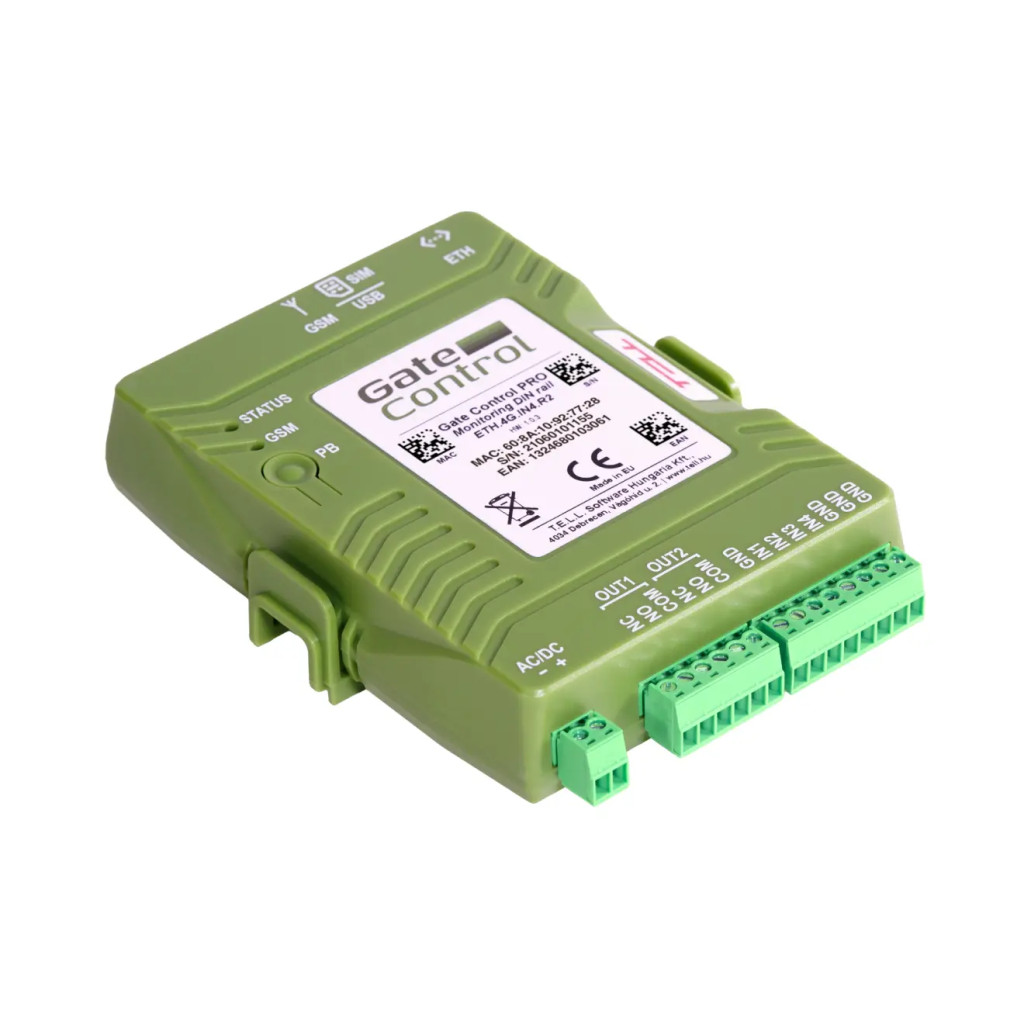

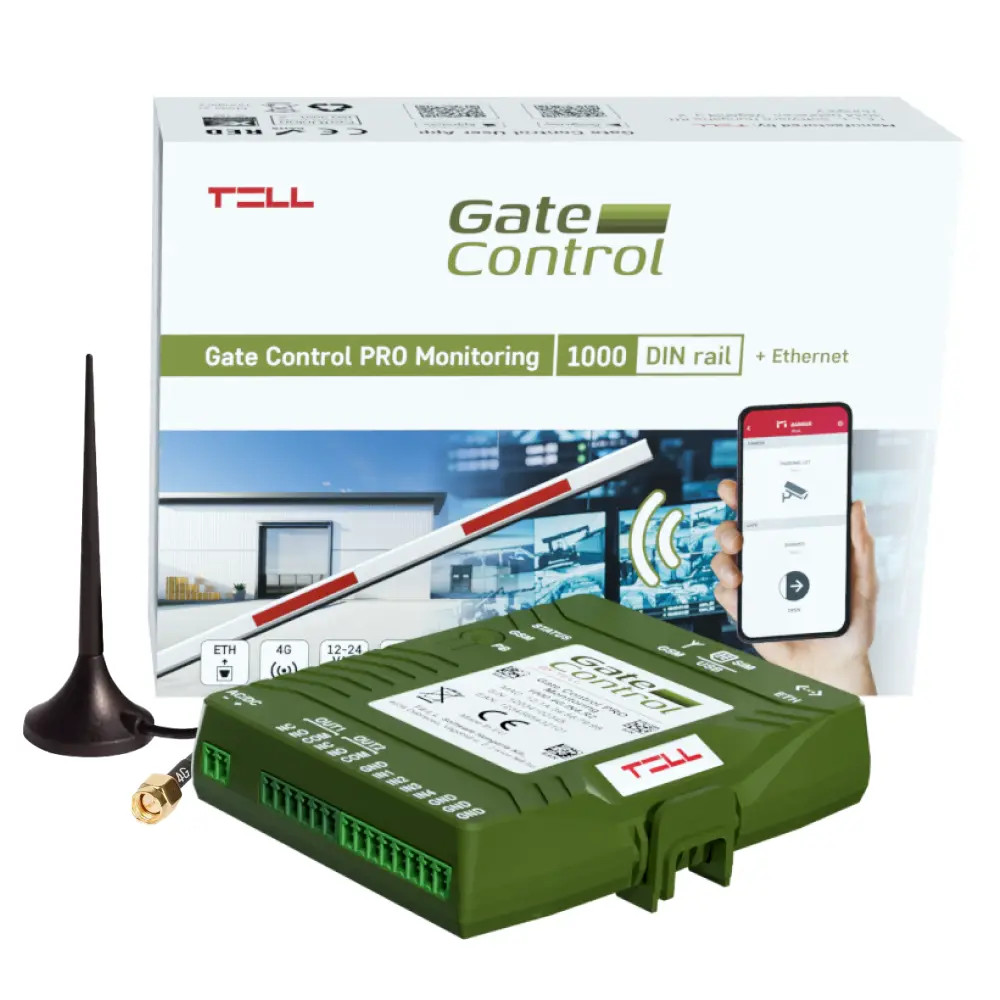

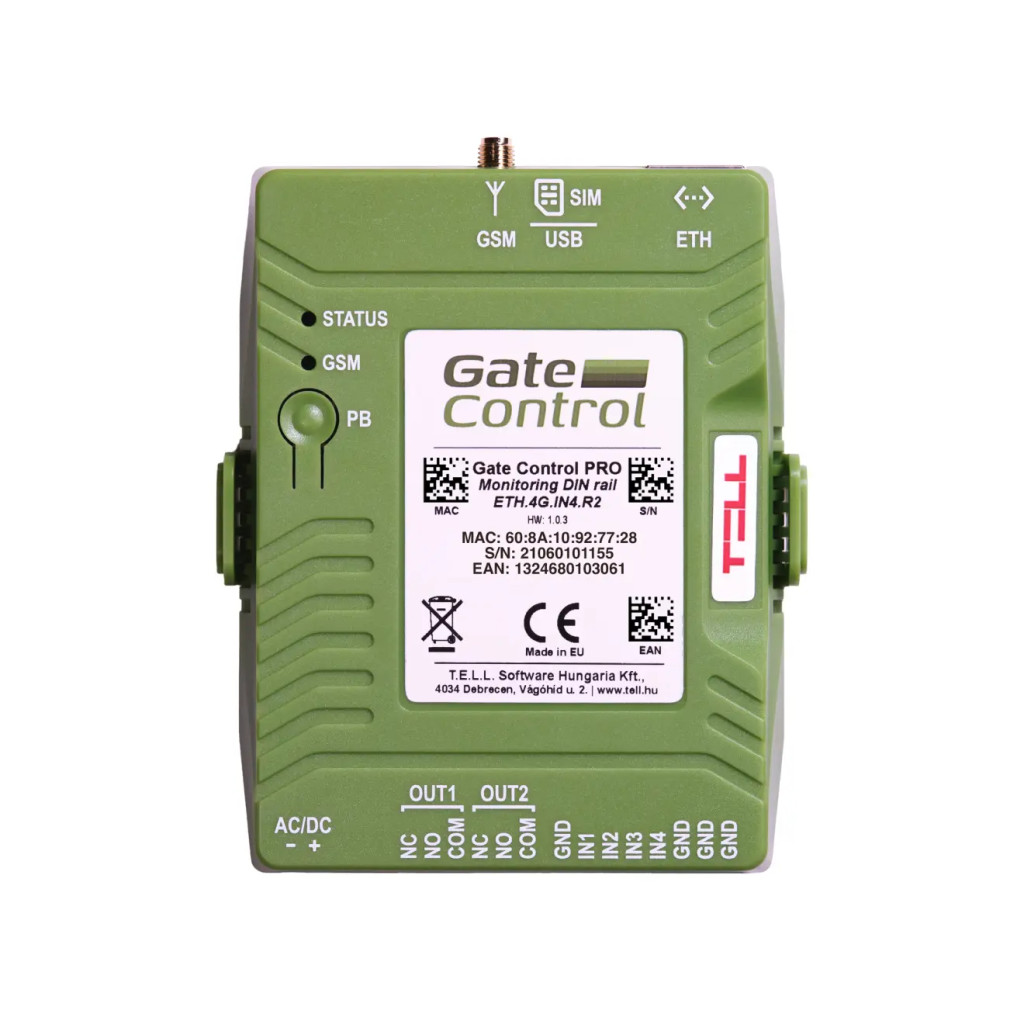

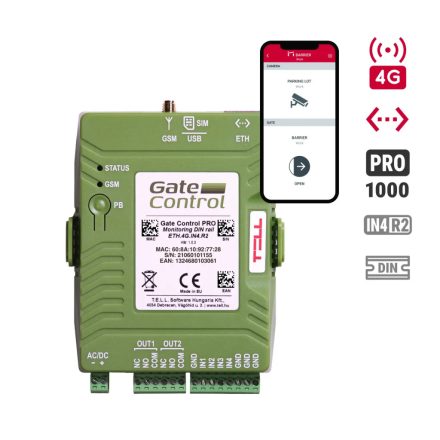

Control electric gates, garage doors, barrier gates via the internet using a mobile application or GSM call. By using limit switches, the open or closed status of the gate can be checked in the mobile application, and an SMS or push message is sent if the gate remains open or does not close. 1000 users can be added, with the possibility of setting permissions (e.g. no access outside working hours). 1000 events can be stored, identifying the user and the time of control. No distance limit!
- The system has been specifically designed to control electric garden gates, garage doors and barriers.
- The device is only suitable for controlling gates that are equipped with an electric motor and a motor control board.
- The device requires a Nano (4FF) size SIM card.
- Important! The SIM card must be capable of VoLTE voice calls. If you already have a SIM card, please inquire with your service provider.
- In attention of end users: Please seek help from a professional electric gate installer to install the device!
Main features:

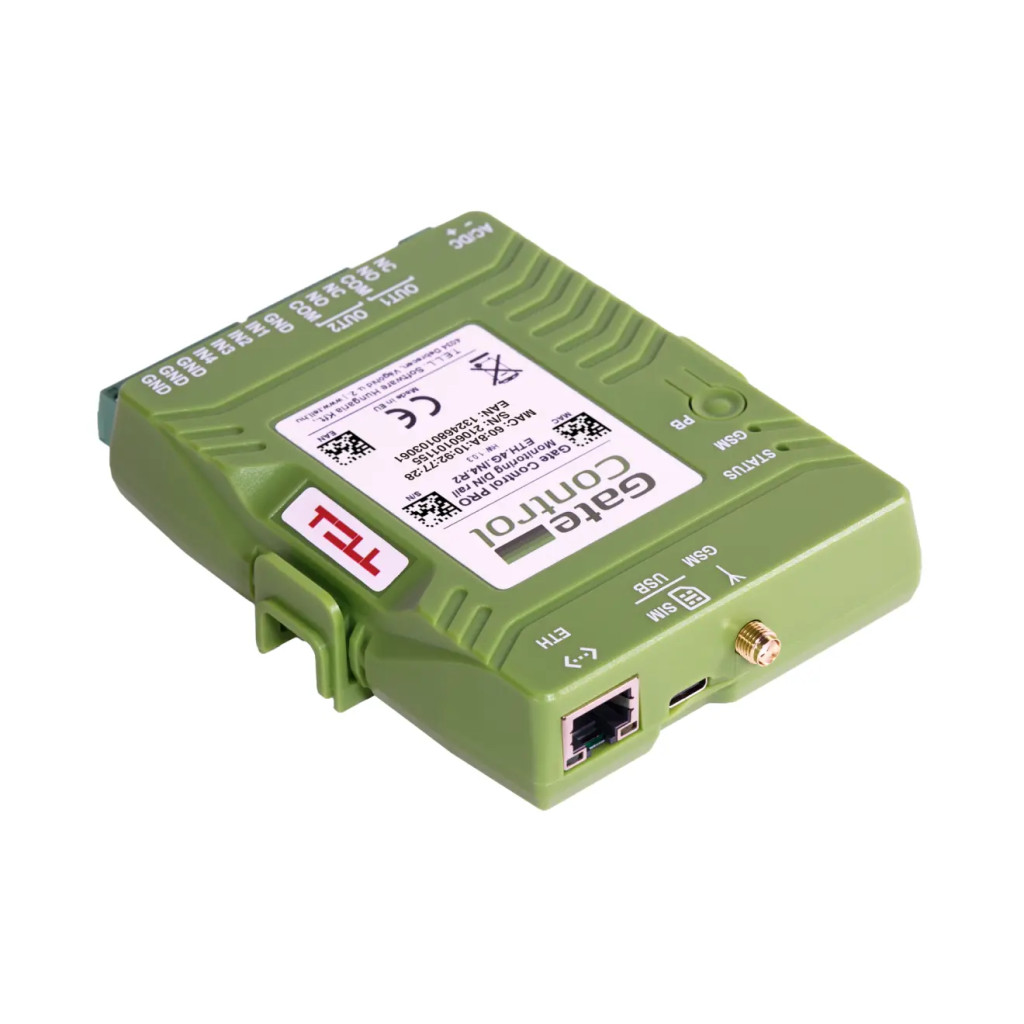

- Ethernet port and 4G modem
- IP/4G/2G communication
- Control of electric gates and barriers via mobile phone, mobile application or via GSM call
- Option for controlling two different gates or barriers with the same device
- 1000-user variant
- Reporting to alarm monitoring station via TELLMon protocol
- Supported alarm monitoring receivers: TELLMon
- Notification sending if the gate or barrier fails to open or close

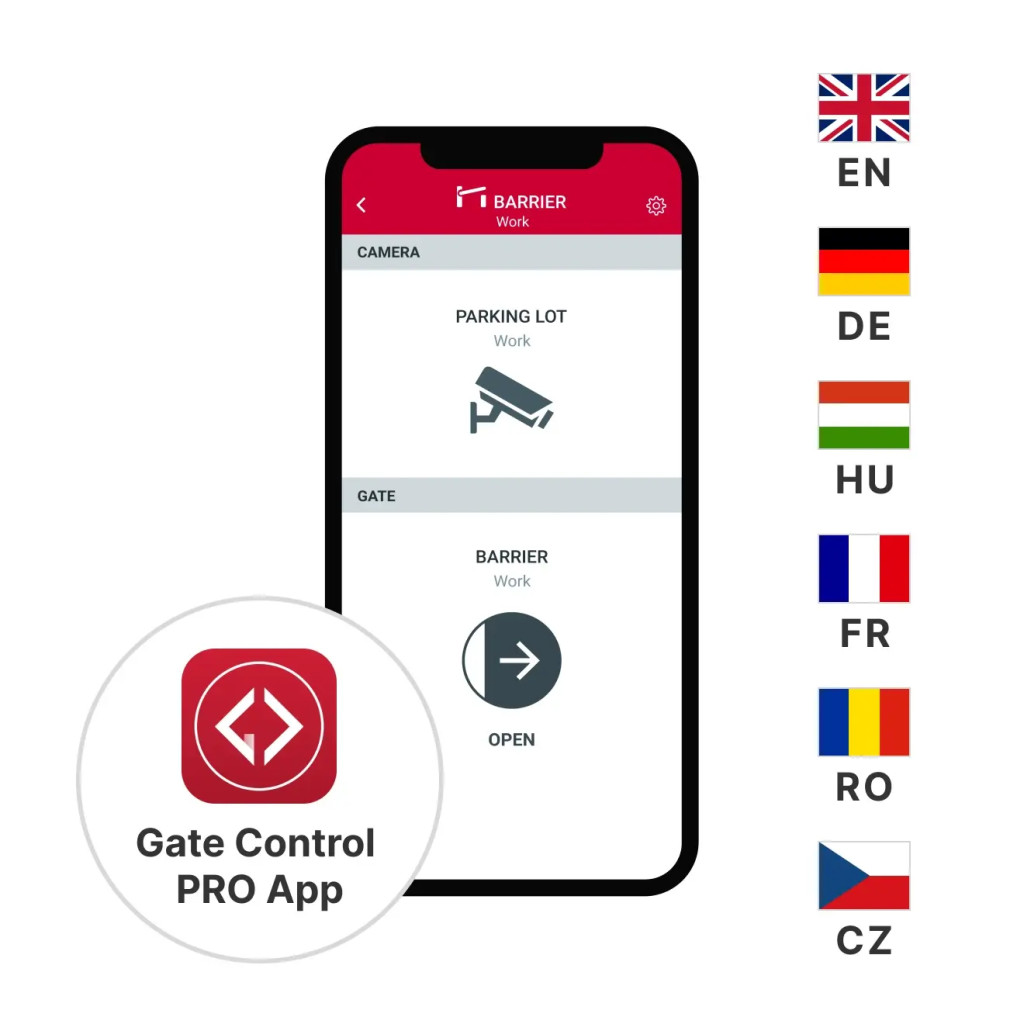

- Showing the open/closed status of the gates or barriers in the mobile application
- Status reporting of 4 contact inputs via e-mail, SMS or call
- Transmits doorbell activity to mobile phone
- IP camera support, makes camera pictures available in the mobile application
- Configurable user permissions and entry periods
- Configurable scheduled controls
- Event log and report sending in e-mail
- Supported operating system: Windows 10
- DIN rail compatible
Product recommendation:
*********
Gate Control PRO - Integrated into external software
The Gate Control PRO device offers new possibilities for software developed by third parties. Now, you can easily and efficiently integrate these devices into third-party software using our API connection.
For further information, please check out our API documentation or contact Technical Support.
Download API documentation ⇒ DOWNLOAD
