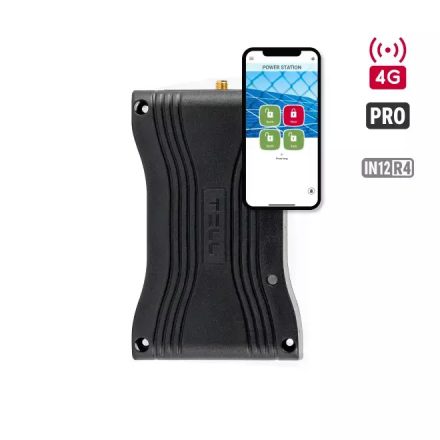

FenceGuard PRO-4G.IN12.R4

The FenceGuard PRO communicator has been designed for use with the NEMTEK DRUID LCD 25 and LCD 28 electric fence energizer. Its key functions are forwarding of the energizer’s status reports to remote monitoring station over the mobile Internet using selectable Contact ID-based protocols, as well as to users via Push messages, and it also enables controlling the energizer remotely via relay outputs.

More details about the product

55 900 Ft
gross: 70 993 Ft

I want to try it

Details

Key features:

12 configurable NO/NC contact inputs for custom report sending.
4 NO/NC relay outputs, that can be controlled from the mobile app.
1 RS232 serial port for connecting to the energizer.
Forwarding the status reports of the connected energizer, and the input events of the device to remote monitoring station over the Internet, to up to 2 IP addresses, using SIA IP DC-09, TELLMon, or TEX protocol.

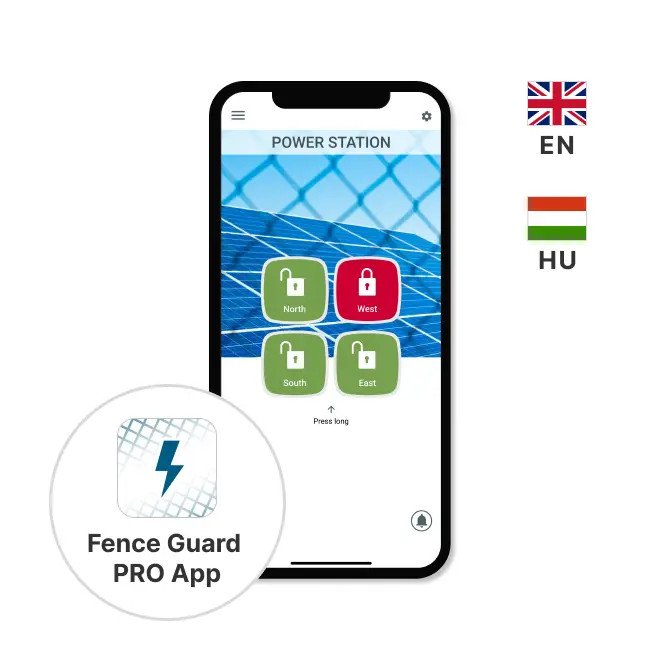

FenceGuard PRO multiplatform mobile application (iOS, Android).
Push message sending on energizer status reports and the input events of the device to up to 20 registered mobile devices.
Configurable Contact ID event codes for each input, including partition and zone number options.
Output control from the mobile application, which is suitable for remote arming and disarming of the connected energizer’s zones.
Supply voltage and data use monitoring with warning notification upon reaching the configured levels.
Supported operating system: Windows 10

Application area

Fence protection systems (forwarding of reports, remote arming and disarming of protection zones, other custom remote controls, remote management and programming)

Info

Identifiers

Additional product versions:

4G.IN12.R4

Technical specification

Transmission channel:

4G / 2G

Frequency band:

900/1800 MHz@GSM/EDGE, B1/B8@WCDMA, B1/B3/B7/B8/B20/B28A@LTE

Operating temperature:

-20 ºC - +70 ºC

Supply voltage:

12-30V DC

Current consumption (maximum):

500 mA @ 12V DC, 250 mA @ 24V DC

Current consumption (nominal):

80 mA @ 12V DC

Max. output load:

1 A @ 24V DC / 125V AC

Casing:

Plastic

Terminal connector design:

Connectable

Dimensions:

131x82x37 mm

Package size:

180x131x55 mm

Product weight:

170 g

Weight (with package):

285 g

Inputs

Contact inputs:

Configurable inputs (NO/NC):

Adjustable input sensitivity:

Yes

Serial port (RS232):

Yes

Outputs

Relay outputs:

Output control over the Internet:

Yes

Notifications

Push notification:

Yes

IP-based reporting to monitoring station:

Yes

Supported protocols

SIA IP DC-09 protocol:

Yes

TELLMon protocol:

Yes

TEX protocol:

Yes

Remote monitoring

Monitoring station IP addresses:

Individual reporting to monitoring station:

Yes

Users

Maximal number of users:

Programming

Programming method:

USB / IP

Programming software:

Yes

Other functions

Configurable internal Contact ID event codes:

Yes

Built-in internal clock:

Yes

Security password:

Yes

Event logs / Number of stored events:

Yes / 500

Mobile application:

Yes

Periodic test report:

Yes

Alarm restriction:

Yes

Transparent serial port support:

Yes

Weight:

350 g/pcs
