Dualcom-4G.IN6.R6 KIT

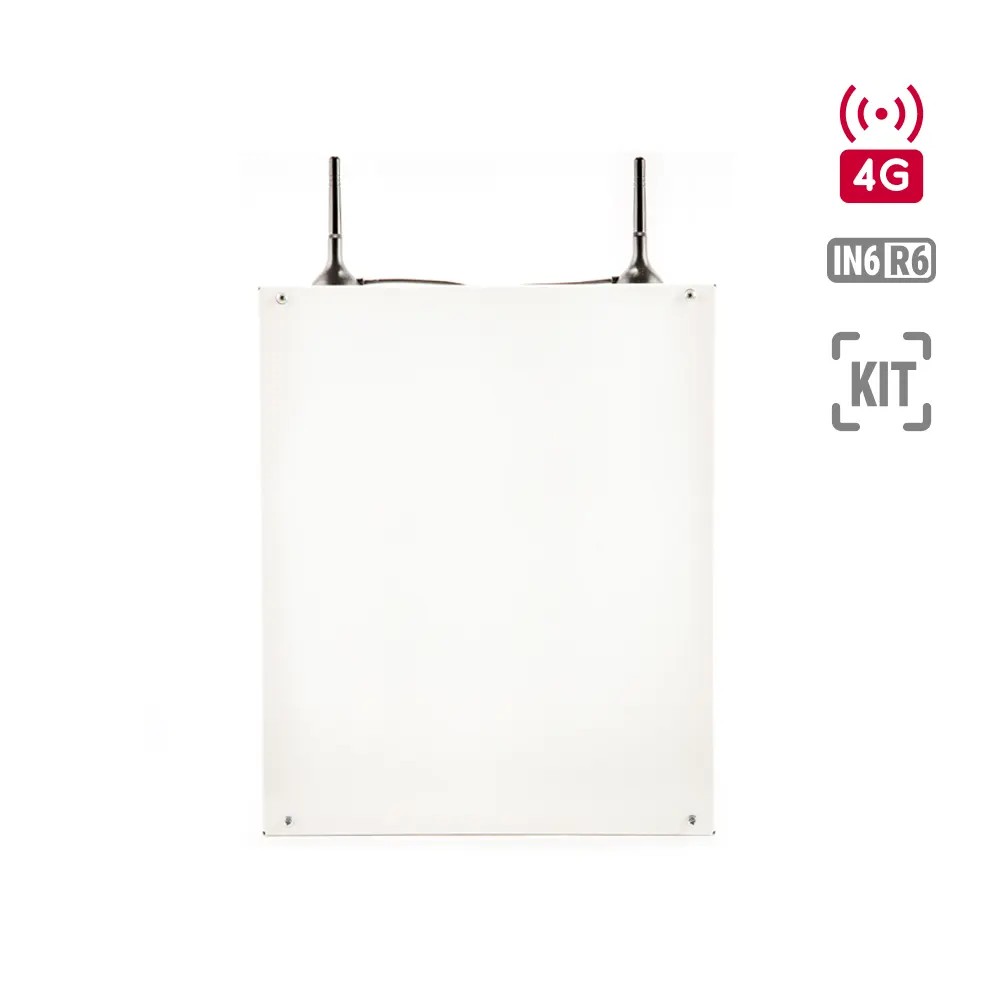

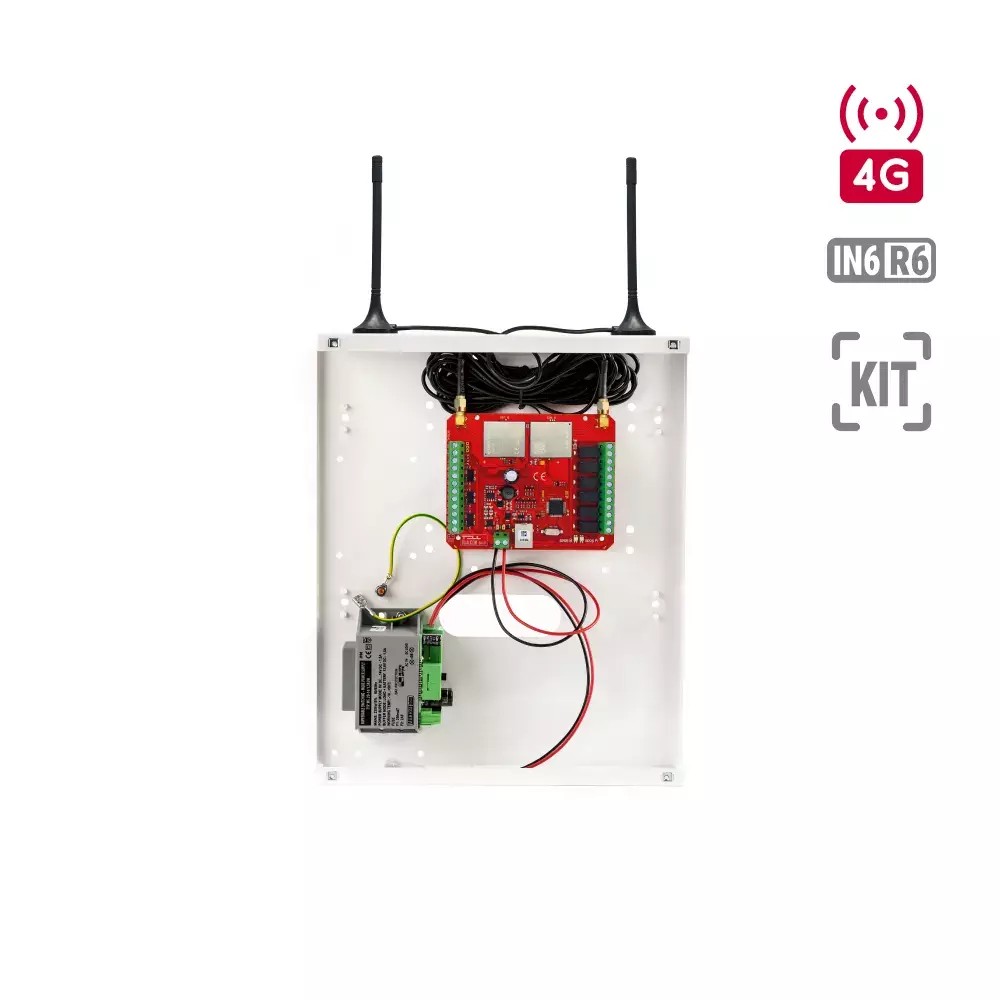

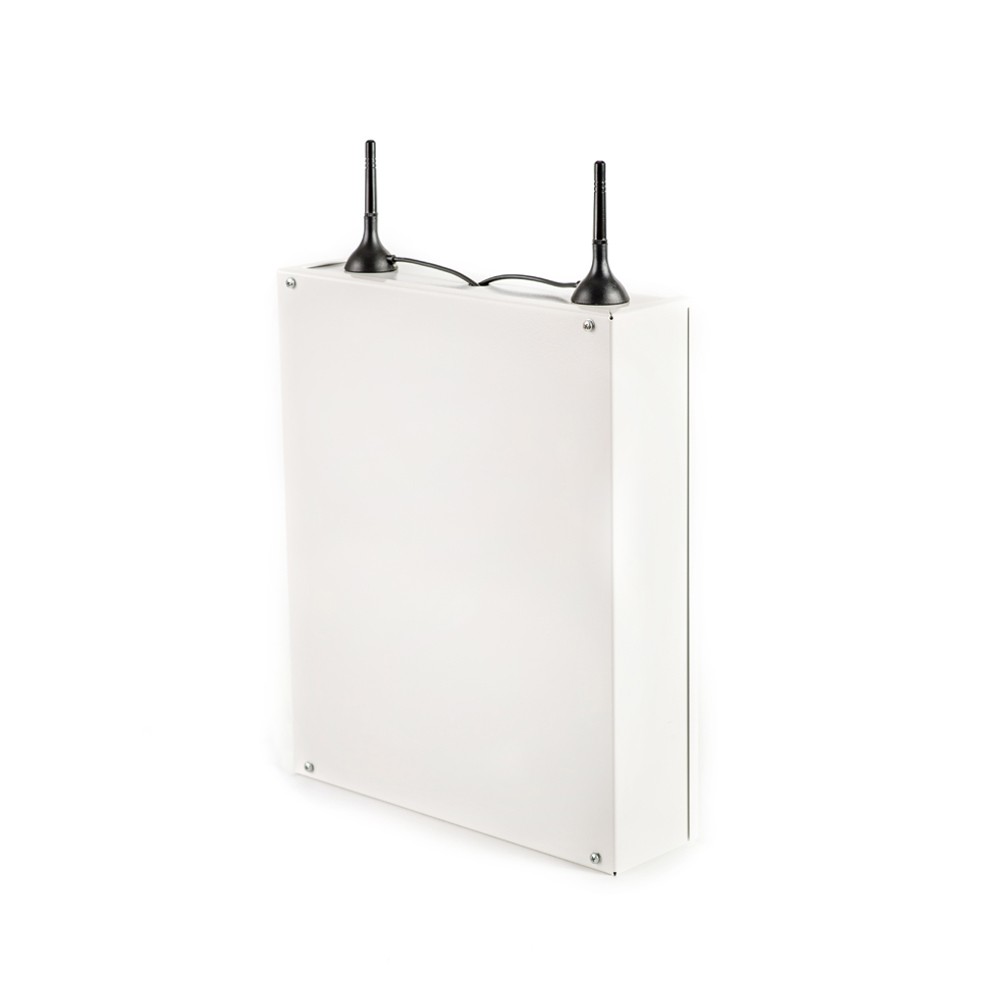

DUALCOM 4G with metal housing, and TT25VA-12V5 power supply
(12V 7Ah battery fits inside)

Communicator for fire alarm control panels that converts contact input events to SIA DC-09, TELLMon or TEX format and sends them to the alarm monitoring receiver through IP channel on the mobile network.

More details about the product

Additional product versions

2G.IN6.R6 KIT

2G.IN6.R6

4G.IN6.R6 KIT

4G.IN6.R6

EXT - IN24

91 700 Ft
gross: 116 459 Ft

Details

Main features:

Contact controlled communicator
4G/3G/2G communication
Supported communication protocols: SIA DC-09, TELLMon, TEX
Parallel usage of two independent modems
Communicates directly with the receiver
Reporting to up to 4 IP addresses, meaning 2 primary IP addresses per network
6 NO/NC/EOL contact inputs
6 configurable relay outputs
Supervision message with configurable interval of sending for automatic supervision of transmission channels
Supported operating system: Windows 10

Characteristics:

It can be used for any control panel which has contact outputs or the contact outputs can be obtained with relays. Using this device, the input events are sent to the monitoring station’s IP receiver over the GPRS network, using SIA IP protocol based on ANSI/SIA DC-09-2007 standard, TELLMon or TEX protocol.
No need for a central server, only an end-point IP receiver with Internet connection is necessary. The device works with TELLMon, TEX-MVP and other receivers that support the SIA DC-09 protocol.
Possibility to separate e.g. alarm events and technical events (sending alarm events only to the alarm monitoring station, and technical events only to the technical monitoring station).
Due to the application of duplicated phone modules, the
DUALCOM SIA IP guarantees a high security level, therefore, it is suitable for high risk signal transmission applications (e.g. transmission of fire alarm events).

Application area:

IP communicator for fire alarm control panels

Info

Identifiers

Additional product versions:

4G.IN6.R6 KIT

Technical specification

Dual GSM (2 independent GSM modules):

Yes

Transmission channel:

4G / 2G

Frequency band:

900/1800 MHz@GSM/EDGE, B1/B8@WCDMA, B1/B3/B7/B8/B20/B28A@LTE

Operating temperature:

-20 ºC - +70 ºC

Supply voltage:

12-30V DC

Current consumption (maximum):

400 mA @ 12 VDC, 200 mA @ 24 VDC

Current consumption (nominal):

110 mA @ 12 VDC, 40 mA @ 24 VDC

Casing:

PCB + metal housing

Terminal connector design:

Mounted on the panel

Dimensions:

253x302x72 mm

Package size:

260x310x83 mm

Product weight:

2,45 kg

Weight (with package):

2,5 kg

Inputs

Contact inputs:

EOL inputs:

Yes

Configurable inputs (NO/NC):

Yes

Adjustable input sensitivity:

Yes

Outputs

Relay outputs:

Notifications

IP-based reporting to monitoring station:

Yes

Supported protocols

SIA IP DC-09 protocol:

Yes

TELLMon protocol:

Yes

TEX protocol:

Yes

Remote monitoring

Monitoring station IP addresses:

Individual reporting to monitoring station:

Yes

Programming

Programming method:

USB / IP

Programming software:

Yes

Other functions

Configurable internal Contact ID event codes:

Yes

Built-in internal clock:

Yes

Event logs / Number of stored events:

Yes / 1000

Dual SIM management:

Yes

Weight:

2.5 kg/db
